Safety relay for use with DeltaV DCS-safety systems

Published

on


Safety & Security
This safety relay is tailored for use with Emerson DeltaV DCS systems. Weidmüller

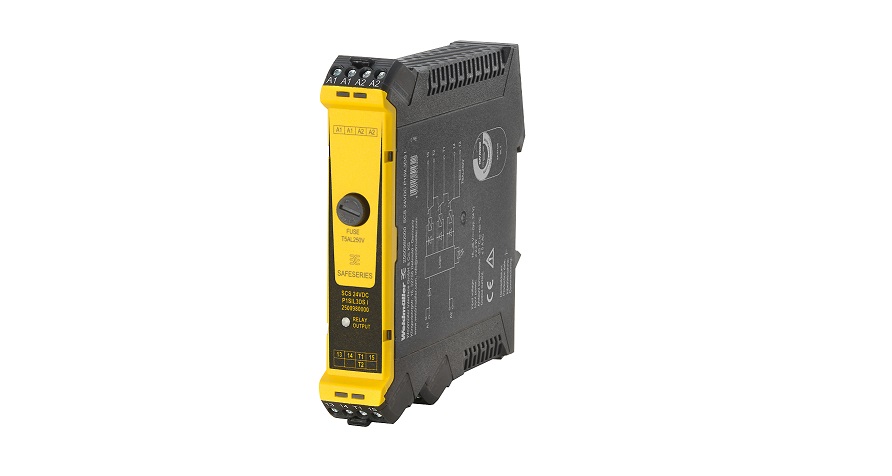

This safety relay is tailored for use with Emerson DeltaV DCS systems. (Picture: Weidmüller)

Emerson, providers in the area of process automation, has included four safety relays from Weidmüller in its DeltaV Alliance product range. The range now features the following four relays: “SCS 24VDC P1SIL3DS M”, “SCS 24VDC P1SIL3DS”, “SCS 24VDC P2SIL3DSES” and “SCS 24VDC P1SIL3DS I”. The DeltaV Alliance product range is made up exclusively of products by market leaders. With the product certification programme, Emerson is able to support its customers in the implementation of the various products, which in turn helps to ensure the stability of the implemented solutions while also reducing both the functional risk and the costs that are incurred during the implementation period.

Weidmüller has developed its safety relays for use with the DeltaV control systems from Emerson. Extensive integration testing has shown that the safety relays work accurately together with the DeltaV control systems. The Weidmüller safety relays have also undergone and successfully passed the relevant testing and approval processes performed by Emerson. The corresponding proof of compatibility is available. For globally active customers, this provides increased reliability while simultaneously helping to reduce costs.

The safety relays from Weidmüller were certified by TÜV-Nord Group as “Approved Safety Function”. This means that they meet the requirements of EN 61508 up to SIL (Safety Integrity Level) 3 as well as the international requirements. The safety relays are also UL-listed.

The following safety relays are approved without restriction by Emerson:

  • “SCS 24VDC P1SIL3DS M”, order no. 1303760000 – with monitor circuit
  • “SCS 24VDC P1SIL3DS”, order no. 1303890000 – without monitor circuit

Both safety relays are used in areas that require functionally safe deactivation, i.e. in back-up systems or as overfill protection in tank systems.

  • “SCS 24VDC P2SIL3DSES”, order no.1319270000 – this relay offers the following functions: “energize to safe” safe activation and “de-energize to safe” safe deactivation.
  • “SCS 24VDC P1SIL3DS I”, order no. 2500980000 – this relay is tailored for use with Emerson DeltaV DCS systems.

The safety relays are used for the safe deactivation of systems in the processing industry (DTS = de-energised to safe), i.e. functional safety. The goal of functional safety procedures is to reduce risks for people and the environment to a tolerable level. The safety relays from Weidmüller boast tried-and-tested technology and sophisticated features.

Weidmüller supports operators of processing systems in the processing industry with certified components for low and high requirement levels up to safety integrity level 3 in accordance with EN 61508.

Chemicals Food & Beverage Pharmaceuticals Safety & Security

RFID access control in hazardous areas
Fast and secure access to processes

Published

on

Integrated RFID readers for fast and secure access control at HMI systems also in hazardous areas. Picture: R. Stahl
Integrated RFID readers for fast and secure access control at HMI systems also in hazardous areas. (Picture: R. Stahl)

Security and access control are given top priority in the production process, as unauthorised users and operating errors can cause great damage. R. Stahl is the only manufacturer in the market offering its explosion-protected Thin Clients with RFID authentication for secure identification of staff with access authority for process control and data communication from the field. On the basis of three technology platforms, the Thin Clients have been designed to meet the different requirements of the chemical and pharmaceutical industries, the food industry as well as oil and gas production.

Additional logins in the automation system are no longer required due to the faster, direct RFID access control, which meets the current security requirements according to FDA and Gamp. It supports transponders with Mifare, Desfire, EV1 or Legic Advant reader technologies. Unlike biometric processes, the contactless RFID technology is also suitable for hygienically sensitive areas where obligatory protective clothing makes authorisation via fingerprint or face recognition impossible. R. Stahl’s explosion-protected RFID readers have been certified for Zones 1/21 and 2/22. They are either available as separate units with a USB interface for panel mounting, or they are integrated directly into the operator enclosures or keyboards by the manufacturer.

The Thin Clients designed for the oil and gas industry with the Shark technology device platform and 21.5″ touchscreens are also available with a RFID reader installed behind the front plate. User authorisation via RFID requires the installation of a suitable device driver in the control system software. On request, the company will provide cards and key fobs equipped with tested transponders for use in hazardous areas.

Continue Reading

Safety & Security

Explosion protection
IEC conference at R. Stahl

Published

on

The manufacturer R. Stahl organised a two-week conference of the International Electrotechnical Commission Technical Committee 31 starting on 25th March 2019.
The manufacturer R. Stahl organised a two-week conference of the International Electrotechnical Commission Technical Committee 31 starting on 25th March 2019. (Picture: R. Stahl)

The IEC Technical Committee 31 conference, which started on 25th March 2019, attracted around 200 experts in explosion protection from all over the world to Waldenburg. The company, which has been heavily involved in the IEC for the last decades, and which has sent eight of its own participants to this conference, was responsible for organising the event at its own headquarters.

The TC 31 of the International Electrotechnical Commission is tasked with drawing up and updating international standards in explosion protection. To this end, experts from around 30 nations came together and met in 24 different working committees for two weeks. A number of the decisions made are beneficial for the longevity of advanced technical solutions, which are welcomed by many plant operators as well as machinery and equipment manufacturers. The experts made decisions on several important standards for technology which continues to be state of the art – this resulted in their stability dates, or the validities of the current versions, being officially extended. This concerns the following standards: 60079-18 “Encapsulation”, 60079-19 “Repair” and 60079-28 “Optical radiation”.

In other cases, practical further developments are imminent. This includes converting the Technical Specification “Hazardous areas – Part 43: Devices under unfavourable operating conditions” into a standard. This is targeted both at extreme cold and extreme heat and other exceptionally demanding conditions. The committee work is expected to continue at the next meeting end of October in China. Both the participants and the host, R. Stahl, were delighted with the productivity of the conference and the favourable conditions in Waldenburg. All parties were positive to hold the conference again at the same location in the future.

Continue Reading

Safety & Security

Safety at work
Technical report

Published

on

Leuze electronic Technical Report
Picture: Leuze electronic

“Safety at work – how can machine tools and systems operate safely and efficiently?” For a while now, sensors are not only a matter of process control – today one of their primary tasks is to link processes together. With its extensive range of Safety@work products, Leuze electronic optimizes collaboration between man and machine: sensor and control systems, like those of the RSL 400 safety laser scanner, can be integrated intelligently into the processes performed by machines and safeguard these machines in a reliable and tamperproof manner. At the same time, the processes are structured efficiently and cost-effectively.

Machining work pieces

In machining centers, parts of various materials are machined, turned, and drilled. The prerequisite for processing work pieces in complex machining centers with a high degree of precision is having the right tool available for each work step. In addition to checking whether the tool is present and identifying it, the drill or milling cutter must also be monitored for tool breakage. Inductive switches or camera-based code readers clearly identify whether the correct tool is mounted for the respective processing step. Focused laser photoelectric sensors can – thanks to their very small light spot – reliably check whether even the smallest drills or milling cutters are intact.

Increased level of automation

Industrial robots, which can perform a large number of swivel and gripping movements in a very short period of time, are often used for automated loading and unloading of machine tools. Their movement zones must be reliably protected against access over a large area. Before a robot picks up a part, the part must be uniquely identified to ensure that the correct processing step is carried out. This is done using the DCR 200i camera-based code reader. The DCR 200i is a reader used to detect and identify Data Matrix codes. The fast imager, integrated high-performance LED illumination, as well as high resolution in combination with a very high depth of field guarantee reliable decoding, even with fast processes and high object speeds.

Safety-related monitoring of machines and systems Safety laser scanners such as the RSL 400 from Leuze electronic are used for the safety-related monitoring of areas in and around machines and systems. A maximum operating range, robust operation and simple handling are crucial here. The simultaneous monitoring of four protective fields means the working area can be split up and the speed safely reduced.

The RSL 400 safety laser scanner provides a solution for such applications. Its large operating range of 8.25 meters allows large areas to be monitored. With two parallel protective fields and two integrated safety-related switching outputs, only one RSL 400 safety laser scanner can also monitor two stations independently of one another.

A further option is safeguarding using multiple light beam safety devices. These devices provide a greater operating range and therefore an efficient solution for safeguarding access points over long distances of up to 70 meters – even “around the corner” solutions with multiple mirror columns are possible. Intelligent products such as the MLD 500 safety light curtain have an integrated laser alignment aid for time-saving and cost-effective alignment. Simple configuration by means of wiring and integrated indicator lights for status display are possible, even over long distances.

In-house logistics with automated guided vehicles (AGVs) An AGV, which moves autonomously and flexibly in space, transports blanks into the working area of the robot or machine tool. On completion of the production process, the machined work pieces are collected again. The transportation path of the AGVs must be safeguarded with safety sensors which monitor the presence of persons and objects. An important consideration here is the flexible adaptation of the protective fields to the movement situation and the different loads. In the case of the triangulation principle, an AGV must be equipped with two different scanners. Unlike the contour navigation principle, just one scanner is needed for safeguarding and navigation. This means that safeguarding and data capture for navigation requires one single safety laser scanner. In other words, the scanner simultaneously also provides the measurement data needed for navigation. In addition to that, the measurement values have an extremely high angular resolution and accuracy. This is important to precisely determine the position of the AGV.  The RSL 400 safety laser scanner enables such a combined solution.
