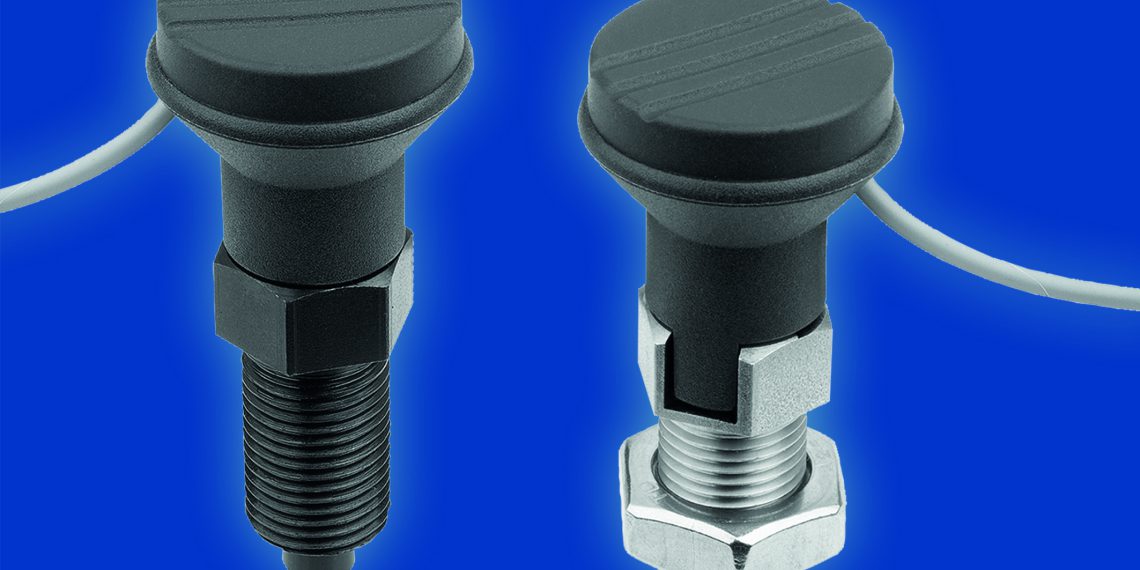

As an alternative to the wireless Bluetooth variant, the Heinrich Kipp plant now also has a cable-connected locking pin with status sensor in its product range. With this product, users are independent of battery runtimes, for example in mechanical engineering, assembly and testing devices or in packaging machine construction. In addition, interference-free signal transmission is guaranteed at all times, even at longer ranges with obstacles. The new locking pins are part of the FEATUREgrip product line, which enables intelligent process monitoring.
The integrated inductive sensor of the locking bolt detects the actuation status. The signal is processed in the mushroom grip and transmitted to the machine control system; a two-meter, three-core cable is provided for this as standard. The sensor switches as soon as the bolt is pulled 1 mm. A machine control system can be used, for example, to specify that the machining cycle does not start until all the studs are in the correct position.
With IP67 protection, the cable-connected design components are resistant to splash water, protected against contact and dust-tight. In addition, users can choose from (hardened or non-hardened) stainless steel versions. Models are available with pin diameters of 5-12 mm and in thread sizes from M10 to M20.
These locking bolts are very suitable, for example, for fixing and clamping in guide systems, in monitored assembly equipment, classically in swiveling or rotating devices, and for stop positioning. Machine parts can thus be brought into a new position only after the bolt has been disengaged and then clamped again. This prevents the locking position from being changed by lateral forces. Around 1,300 versions are available from the company in various sizes, shapes, actuation types, precision levels and materials. In addition, special designs are also realized on request.
The special feature of the product line is the installation of integrated electromechanical and sensory elements. They provide feedback on specific parameters or states and thus ensure process reliability, which is becoming increasingly important in mechanical engineering.
Electric drives offer high positioning repeatability
Whether for alignment, conveying, or pick-and-place and vertical transport applications: Electric drives are used throughout the industry to move workpieces. To ensure the required process reliability, very precise positioning repeatability and very low backlash are necessary in some cases. To enable users to meet these high requirements even better, SMC has expanded its established LESH series of electric actuators to include the LESYH series as electric compact slides in a highly rigid design. They impress with a positioning repeatability of ±0.01 mm (±10 μm) thanks to recirculating ball screws, a backlash of max. 0.1 mm and a vertical payload of up to 20 kg.
They also feature a battery-free absolute encoder that enables fast (re)startup. Transfer applications using electric drives are part of the standard repertoire throughout the industry. If the requirements for precise positioning are particularly high, users must resort to solutions with very accurate repeatability. With the LESH series from SMC, designers already had established drives at their disposal for this purpose – whose performance figures have now been increased again with the series. Thus, the new electric compact slides in a highly rigid design have, in addition to a positioning repeatability accurate to the micrometer, also a very low backlash, can move even higher payloads vertically and also make reference runs unnecessary thanks to a battery-free absolute encoder. The specialist for pneumatic and electric automation thus covers an even wider range of applications.
Precise and powerful
Thanks to the use of a recirculating ball screw for the drive, which can be operated with either a stepper motor or servo motor (24 VDC each), the series achieves a repeat accuracy of ±0.01 mm during positioning. This means that it meets particularly high requirements in terms of precision. This is further supported by a maximum backlash of 0.1 mm. Designers thus benefit from improved process reliability in high-precision applications – and this at a max. acceleration of 5000 mm/s2 and a maximum speed of 400 mm/s, which ensures short cycle times. The series is available as a design with or without belt. The latter allows the use as a Z-axis for lifting or lowering workpieces. Compared to the previous series, the vertical payload has once again been significantly increased: from 0.5 to 6 kg (size 8), from 2 to 12 kg (size 16) and from 4 to 20 kg (size 25). If users opt for the option with motor brake, they can access a holding force of up to 385 N. Overall, designers can thus cover a significantly more extensive range of applications.
High flexibility, compatibility and productivity
With the LESYH series, motor mounting is possible in three directions: axial, right or left parallel. In the stepper motor version, the JXC series controllers provide control of the drives via various fieldbus systems (PROFINET, EtherCAT, EtherNet/IP) or other control systems such as IO-Link as well as parallel inputs – in the case of AC servo motors, these are the LECN-T series controllers. As an extension of the LESH series established on the market, it can also be easily integrated. In addition, motors (motor power 100/200 W) from 18 manufacturers can be used for the motorless version. Together, this gives users a high degree of flexibility in machine design. In addition to its impressive performance figures, the LESYH series features a battery-free absolute encoder that stores the last position of the drive in the event of a power failure or emergency stop, for example.
This means that operation can be resumed immediately without a time-consuming reference run, which means more productivity. In addition, not only storage and maintenance requirements are reduced, but also the ecological footprint, since no battery is required, which therefore does not have to be stored or maintained, nor does it have to be disposed of. To reliably detect end positions and intermediate positions, the series can be optionally equipped with a D-M9 series electronic signal transmitter from SMC. This has a 2-color display, whereby the optimum operating range (green) is immediately apparent.
