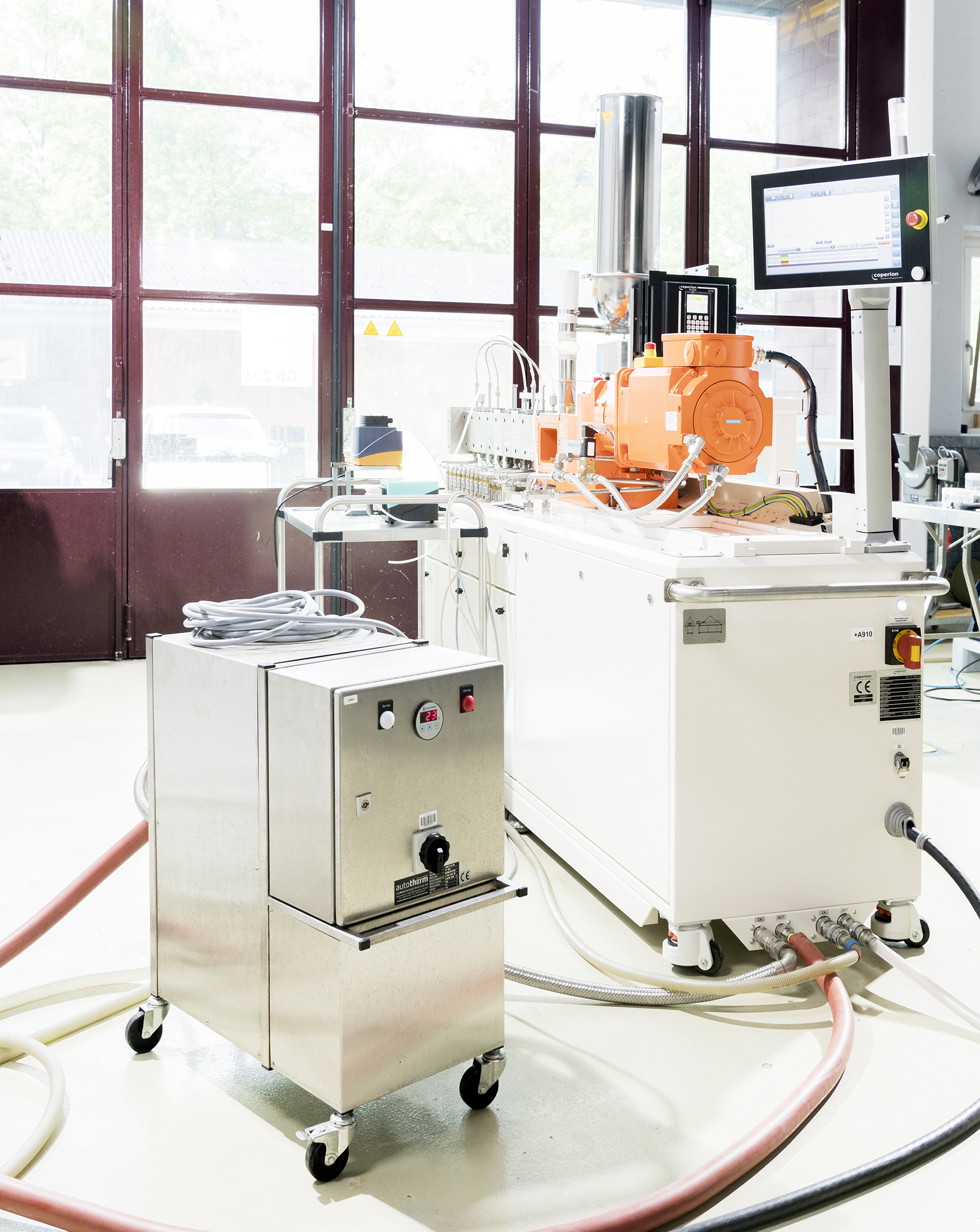

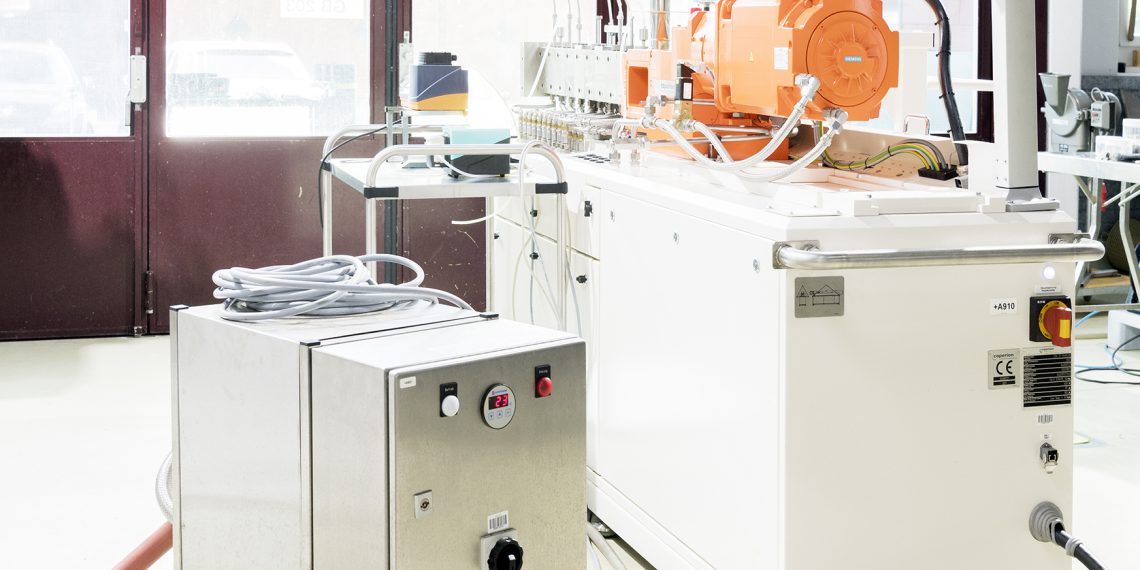

Coperion supplied a ZSK 27 Mv PLUS twin screw extruder to the Institute for Food and Beverage Innovation at Zurich University of Applied Sciences (ZHAW) in Wädenswil last year. With a screw diameter of 27 mm, the Coperion ZSK 27 Mv PLUS extruder satisfies the key food production regulations and has an impressively compact size. It is ideal for research projects and formulation development, as well as small batch production. With its specific torque of 10.6 Nm /cm3 and a maximum screw speed of 1,800 rpm, the extruder can achieve product throughput rates of 10 to 100 kg/h depending on the product. It is easy to scale the extruder up to other sizes. The food extruder supplied comes with a number of options that allow highly flexible use and convenient handling. The scope of supply also includes a KT 20 gravimetric twin screw feeder from Coperion K‑Tron, which is ideal for accurately feeding free flowing to flooding powders and flakes as well as other difficult, poor flowing bulk materials.
The ZHAW uses its ZSK 27 Mv PLUS extruder for a wide range of research and development work, so it must be versatile and perform in a variety of applications. The company designed the extruder for exactly these requirements and equipped it with many quick-change features and devices for flexible processing set-up. For example, the solid feeder can be mounted to two different barrels of the process section. This allows processes to be extended or shortened easily and customized to the requirements of each individual product. Cereals and snacks are extruded with short process lengths, while pulping the by-products of the beverage industry such as grape pulp requires a longer residence time and therefore a longer process section. Process borings also make it possible to add liquids and measure the temperature in different barrels. A peristaltic pump with various hoses and nozzles enables liquids of different viscosities to be added.
Flexible extruder structure for wide range of processes
In order to test different processes and product developments, the company delivered additional screw elements with the extruder. Different screw configurations can cover a broad range of possible applications. Everything from research and development work on simple processes such as direct expanded cereals to complex processes such as the extraction of moist pressing residue or mixing it into a starch or protein matrix can be done using the same extruder. And the company also provides process technology support to ZHAW for developing new formulations and products.
