Oil and gas transfer to offshore platforms
Increase in Saudi Arabia gas production

Published

on


Chemicals, Pumps & Compressors

As early as 2013, a total of 40 process diaphragm pumps were delivered to two large offshore platforms on the Persian Gulf for the purpose of pumping approx. 70 million m³ of natural gas per day and producing about 50 million m³ of gas that is ready for sale. The order, worth around 30 million euros, was the largest in the history of Lewa at the time–and then the follow-up order was placed in the summer of 2017: A total of eight LGB2 Boxer pumps and 12 LDH5 series process pumps have been ordered for transferring monoethylene glycol (MEG) from the Tie In Platforms (TP) to the Well Head Platforms (WHP) and on-site MEG injection. This injection is intended to prevent the ice formation in the drill hole that can occur during the formation of methane hydrate. The project will be completed in 2019.

The plant, which was built in 2013 and has been the largest of its kind in Saudi Arabia ever since, has now been expanded to handle having its daily gas flow of 70 million m³ increased by another 56 million m³. “A fundamental goal of the client is to gradually convert the energy utilities of the country from crude oil to gas in order to make more crude oil available for the global market” explains Klaus Figgle, Engineering Project Manager at Lewa.

The eight LGB2 Boxer pumps with the corresponding M9 pump heads were installed on the Tie In Platforms (TP). They are responsible for transferring monoethylene glycol (MEG) to the Well Head Platforms (WHP). The LGB2 pumps operate with a relatively low pressure of about 205 bar, since they only have to overcome the drop in pressure in the supply line between the platforms. The LGB modular drive unit, which has already been used as an LGB3 model for the preliminary project, stands out for its compactness and very high power density.
WEG Germany was acquired as a cooperation partner for the project. The order was processed as the first major project involving WEG as a powertrain manufacturer. The custom-designed powertrain solution consists of energy-efficient motors and complete control cabinet systems with integrated frequency inverters–ideal for offshore applications. WEG, one of the largest global electric motor manufacturers, has the necessary approval of the end client for its plant in Brazil.

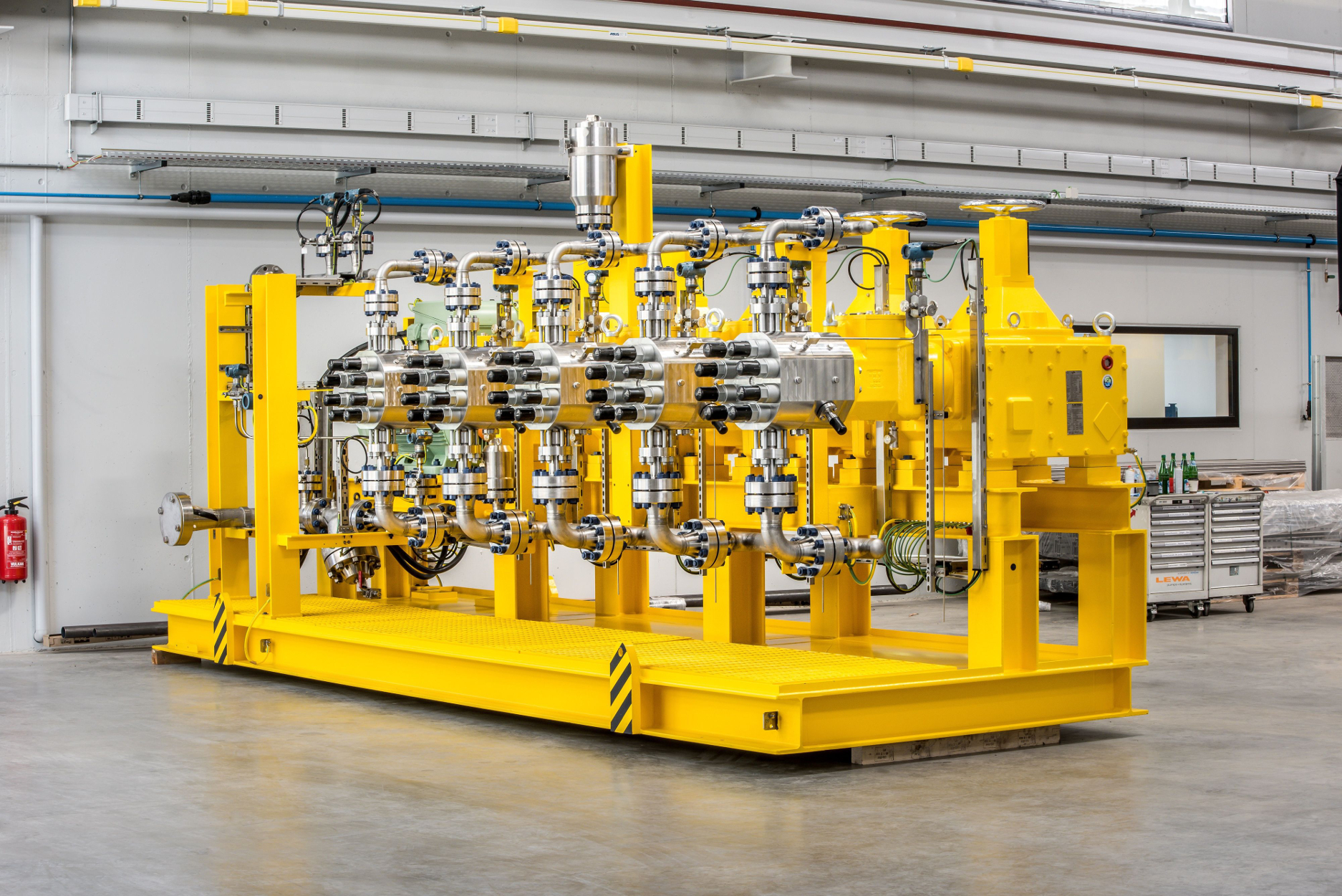

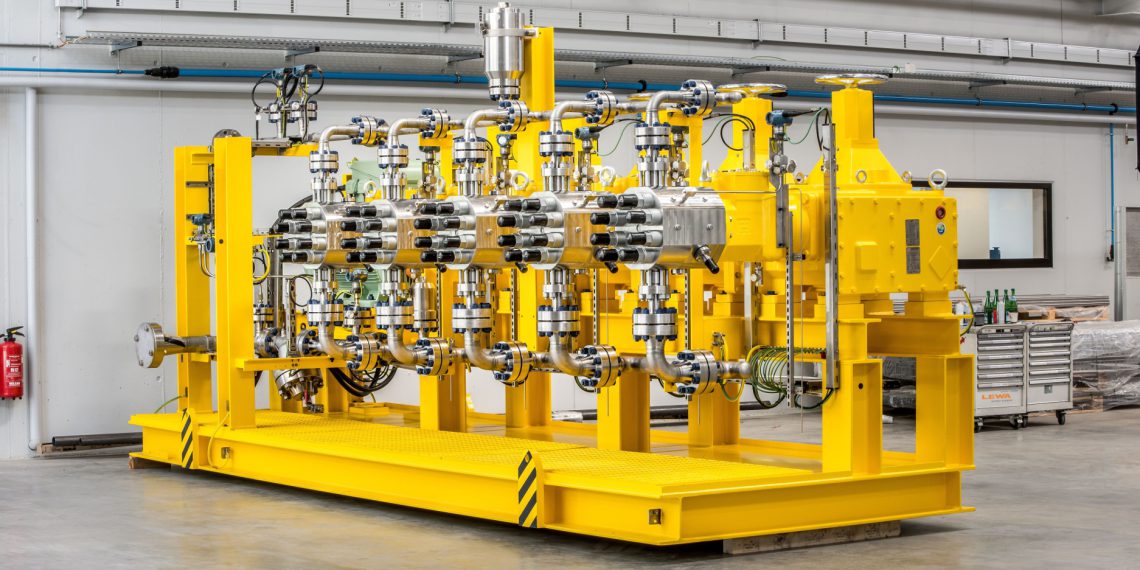

A total of twelve pumps have been ordered for the injection of MEG. (Source: Lewa)

The twelve LDH5 series injection pumps, with corresponding M8 pump heads, consist of five coupled single powertrains. “Similarly to the preliminary project, the MEG continuously circulates between the platforms and the glycol regeneration units in the onshore preparation plants,” Figgle continues. “In the process of preventing methane hydrate accumulation, our injection pumps inject the MEG at the necessary points to eliminate ice formation in the drill holes. In addition to the pressure drops in the lines, these pumps must also overcome the back pressure from the source, which is why pressures of up to 600 bar must be expected.”

The M8 pump heads installed for this purpose are equipped with PTFE diaphragms, which can handle even high pressure without problems, and offer further advantages when compared to the originally required metal diaphragms. Since pumps with metal diaphragms are usually larger and heavier, Lewa offered the PTFE diaphragms to provide the client with a solution which–in addition to space and size advantages–also resulted in a reduction in the production costs of the entire platform. Lewa is the only company in the world qualified to supply pumps with PTFE diaphragms for the end client in Saudi Arabia, which are designed for a pressure of over 350 bar.

“This solution, developed specifically for the application, was completed smoothly by all parties involved and delivered on time,” Figgle says to summarize. “On the whole, all sides have been very pleased with the project. It will be handed over to the client in 2019.”

Chemicals News

Marl Chemical Park
Siemens build industrial power plant

Published

on

Siemens to build industrial power plant at the Marl Chemical Park in Germany
Picture: Siemens

Siemens will build a highly efficient combined cycle power plant as a turnkey project at the Marl Chemical Park in North Rhine-Westphalia, Germany. The order was placed by the specialty chemical group Evonik Industries. The new industrial power plant will consist of two units, each with an electrical capacity of 90 megawatts, and produce both electricity and process steam for the chemical park. The site’s integrated steam network will also supply district heat for about 2,000 homes in the future. The plant’s fuel efficiency will thus exceed 90 percent. With this combined cycle power plant, Evonik will replace its last coal-fired plant at the Marl Chemical Park. Because the plant will produce environmentally friendly electricity, process steam, and district heat from natural gas, the company will be able to cut CO2 emissions by one million metric tons per year. The plant thus makes an important contribution to decarbonization. Construction is scheduled to begin later in 2019, and the power plant is expected to go into operation in 2022. Siemens Financial Services (SFS), Siemens’ financing arm, developed a leasing financing solution specifically for Evonik in collaboration with Siemens Gas and Power. Together with the KfW IPEX Bank and LBBW, SFS will handle refinancing of the leasing agreement. The project volume is in the lower triple-digit million euro range.

“In building this power plant, whose technical and commercial concept was worked out jointly between Siemens and Evonik, we’re helping Evonik significantly cut its CO2 emissions,” said Michael Becker, CFO of Siemens Gas and Power. “In addition, the state-of-the-art plant will ensure a reliable supply of electricity and process steam for the chemical park. The ability to use various gases as fuel is another benefit and further increases the plant’s economic feasibility.”

“In deciding to build the new power plant, we’re ending our coal-based production of electricity and steam in Marl after more than 80 years, and cutting the direct annual greenhouse gas emissions of our plants by nearly one fifth worldwide,” said Thomas Wessel, Chief Human Resources Officer at Evonik. “We are pleased to have Siemens at our side, a reliable partner who is helping us to achieve our ambitious climate goals.”

“Siemens Financial Services’ structuring expertise and experience in the energy sector for years enabled us to offer a financing solution tailored to the customer’s needs,” said Veronika Bienert, CFO of Siemens Financial Services. “This made it possible to implement the project in close cooperation with Siemens Gas and Power, which is providing the technology and service activities.”

Siemens’ scope of supply includes the turnkey construction of two identical power plant units as well as one industrial gas turbine, and one industrial steam turbine for each unit. It also includes generators, auxiliary systems, and the control system.

Siemens will carry out preventive maintenance work on both gas turbines for a period of 15 years under a long-term service agreement. This agreement also covers remote diagnostic services for daily plant monitoring and monthly analyses of the operating data. These digital services will ensure high plant availability.

Thanks to the use of special heat recovery steam generators and catalysts, the system can operate on natural gas as well as re-gasified liquefied natural gas (LNG), and various other gases, such as residual gas from production processes. Each power plant unit can produce not only electricity but also up to 220 metric tons of process steam per hour. Thanks to the plant’s high flexibility that enables it to compensate for the fluctuating infeed of renewable energy into the power grid and its ability to produce district heat, it is also supporting the energy transition in Germany.
