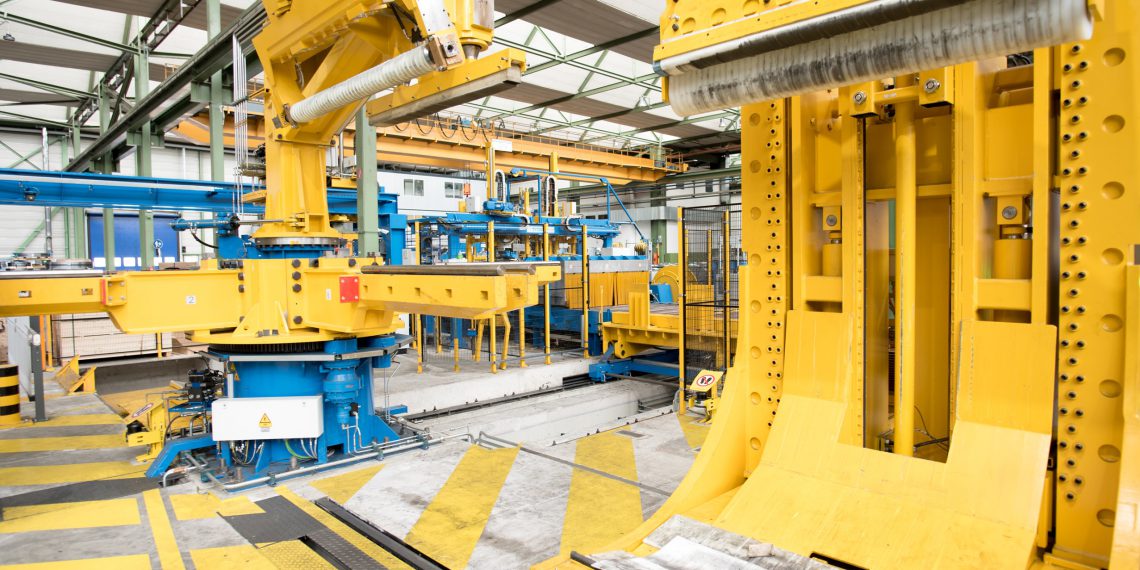

For high product quality, protection against corrosion during coil storage & transport is the guarantor for the further processing of cold strips . Efficient oiling during cold rolling is elementary for this in various areas of the rolling or slitting lines. technotrans developed customized and sustainable concepts for spray oiling for several production lines of the BILSTEIN GROUP. This not only enables production that is gentle on resources and health, but also greater flexibility and significant cost savings.
High product availability requires intelligent stock management in steel processing. To ensure the quality of the products, their protection is a top priority. In particular, counteracting corrosion of materials by external influences even when stored in halls plays an important role. Even in the cold rolling processes, manufacturers therefore rely on the application of effective corrosion protection by means of special oils. To make them as efficient as possible, oiling equipment in cold rolling mills needs to be precisely designed for the specific conditions.
New oiling concept for zero-defect principle
Due to the increasing demands on product quality and sustainability by its customers, particularly in the automotive industry, the Hagen-based company also recognized a growing need for effective oiling of its cold strip to prevent corrosion. This is because in the mile-by-mile manufacture of its products, the company follows a strict zero-defect principle along the entire process chain in production. For years, the steel processor had already relied on well-known oiling solutions from a long-standing supplier. But the group wanted to take the processes to a new level.
Up to now, technically comparatively simple systems had provided the oiling. In its search for a new solution provider, the group came across technotrans’ fluid expertise. Previously active in particular in the printing industry and in stamping and forming technology, the Sassenberg-based manufacturer transferred its know-how and established technology for airless spray lubrication to the requirements of cold rolling processes. Following a successful test phase, technotrans was awarded the contract for equipping two plants at the site in the US state of Kentucky – and later at other plants in Germany.
Increased cost and process efficiency and flexibility at the same time
“Thanks to technotrans technology, we have raised the oiling processes for high-quality corrosion protection of our cold-rolled strip to a new level of quality. We save costs, reduce maintenance measures on the periphery and continue to be extremely flexible in processing oiled and non-oiled cold-rolled strip on just one line.”
– Eugen Schitz, responsible for plant and process engineering

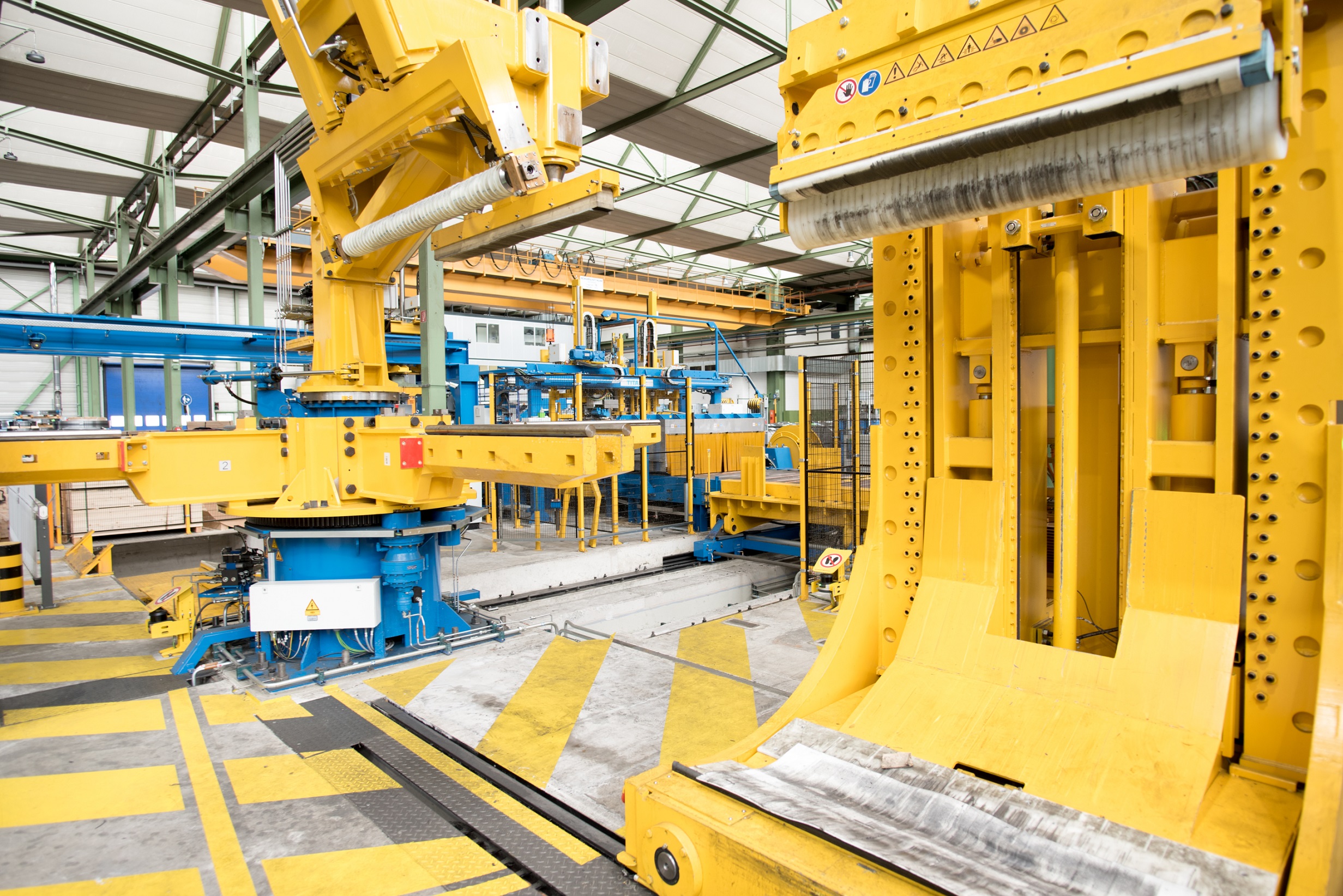

The technotrans oiling system is used at various locations for both re-rolling and slitting, as well as on the packaging line. For the different areas of application, technotrans designed the tailor-made solution based on its spray.xact technology. The focus was particularly on achieving the highest possible level of efficiency and sustainability.
The compressed air-free spray lubrication of the lubrication system turned out to be advantageous for the requirements. “In contrast to conventional solutions, the technotrans valves open and close in a predefined cycle using electrical pulses,” explains Schitz. “Because there are no compressed air currents, we achieve uniform and at the same time low-mist oiling” – and this despite the high processing speeds of up to 16 m/s during cold rolling. The group thus not only achieves a homogeneous result for corrosion protection, but also saves costs thanks to the high efficiency of the technotrans solution.
Laterally movable for dry running
The spray bars in the re-rolling lines can be moved laterally electrically or pneumatically and are thus not rigidly integrated in the plant as was previously the case. This results in the following advantage for the BILSTEIN GROUP: The steel processor can process the cold-rolled strips both with and without spray lubrication, depending on customer requirements. Because the technotrans components are not located above the conveyor belts in the case of unlubricated products, there is no risk of oil droplets getting onto the belts during dry running. “Such impurities on our belts would be an absolute disadvantage for further processing – for example, during painting,” says Schitz. “Thanks to the technotrans idea, we assure our customers of high product quality.”
In the case of re-rolling, the positioning of the spray bars on both sides also provides additional flexibility. The group is able to adapt their processes according to the respective requirements. This is because different required plate thicknesses entail different rolling intervals. “In the end, it doesn’t matter whether the line rolls in an even or odd number,” explains Hary Kosciesza, Business Development Manager at technotrans.
“As needed, spray nozzles located behind or in front of the rolling stand apply the corrosion inhibitor.” In order for the spray bars to be able to deliver the required amount at all during the high speeds of the cold rolling processes, technotrans in some cases integrated double spray rows with spray nozzles located one behind the other per system. This enables the group to apply oil in quantities ranging from 0.5 to 2.5 g/m². The fact that machine operators can very easily set and precisely regulate the desired oil quantity also makes work easier.
From first order to close partnership
The cooperation, which now extends over eight joint projects, started with the establishment of a new site in Kentucky in the USA. At the newly established BILSTEIN Cold Rolled Steel LP, technotrans developed a spray system along the slitting line, which went into operation at the end of 2017. In addition, the oiling unit within the connected packaging line sprays the end faces of the coils with corrosion protection agent.
The group was so convinced by the solution for the two processes that it also made use of technotrans’ expertise for other processes. Already at several locations, including the headquarters in Hagen and the subsidiary Hugo Vogelsang, technotrans spray systems ensure optimum oiling results in the final pass directly at the rolling mill within the re-rolling process in various spray widths from 500 mm. Most recently, a new re-rolling, slitting line and the associated packaging line at the main plant in Hagen went into operation in September with a 1,350 mm wide spray oiling system.
BILSTEIN intends to continue relying on technotrans
“Depending on the requirements of the specific cold rolling line and the needs of BILSTEIN customers in terms of order volumes, we design our solutions into the machines,” Kosciesza emphasizes. For the BILSTEIN GROUP, technotrans developed precisely fitting spray systems for existing plants or for completely new plants in close coordination with the OEM partners. The retrofitting was carried out during the scheduled downtimes of the systems as part of the regular maintenance intervals.
The company intends to continue its modernization course in the future not only because of the technical implementation with technotrans technology. The harmonious and targeted project handling from the development of the custom-fit solution through to commissioning also speaks in favor of the Sassenberg company, says Schitz: “For us, one thing is certain: if we need new solutions for cold strip oiling, technotrans is our first port of call.”
