Digitization for process optimization

Many companies see digitization as an important step for future success. They are therefore trying to optimize their processes in order to strengthen their own market position. For the familyrun company Maschinenfabrik Gustav Eirich, optimizing production processes and intelligently networking equipment is a step towards greater efficiency and sustainability. This creates flexible manufacturing structures, which are highly important in such a dynamic market. With its digital product portfolio, the company has also taken the issue of customer proximity to a new level: from fast spare parts ordering to technical support from the specialist staff at the machine factory, the company wants to offer its customers even more service and threshold-free accessibility through digital offerings.

“How can a reprocessing plant that we deliver to a customer today, as a system, always move in an optimum without the customer having to resort to experienced experts, who can be found less and less? This knowledge must be implemented in the system by the machine supplier. We see this as a great opportunity and have a responsibility to our customers. With Life Cycle Service and Process Analytics, we offer our focus industries real added value to improve production processes safely and sustainably.”

– Stephan Eirich, Managing Director

Life Cycle Service enables transparent service, via real-time monitoring of plants to an augmented reality maintenance service. The solutions focus on optimizing plant downtime and stoppages:

– myEirich

The electronic spare parts catalog enables customers to independently and intuitively identify installed components using visual models. The shopping cart rounds off the ServiceExpert ECD software. Required machine and system parts can be placed there and the ordering process can be triggered directly by e-mail. The application provides real-time information on the processing status of a service order and live tracking of the shipping status.

– Condition monitoring

The system is based on recording the condition of the machine by measuring and analyzing physical variables. Sensors provide data in real time. Permanent evaluation makes it possible to show trends and detect possible damage to components even before a failure occurs. Crashes, bearing damage, imbalance, gearbox faults and wear are detected and displayed at an early stage. The customer can order spare parts or contact the service department at an early stage, before the machine breaks down or he has to put up with waiting times for service engineers.

– Teleservice

Service without a technician on site with remote service and diagnosis. The automatic acquisition of machine and process data and their analysis enables fault localization from a distance. After the customer’s approval, troubleshooting measures can be initiated immediately and a customized update of the software can be carried out without an on-site visit.

– EIRICH AR Services

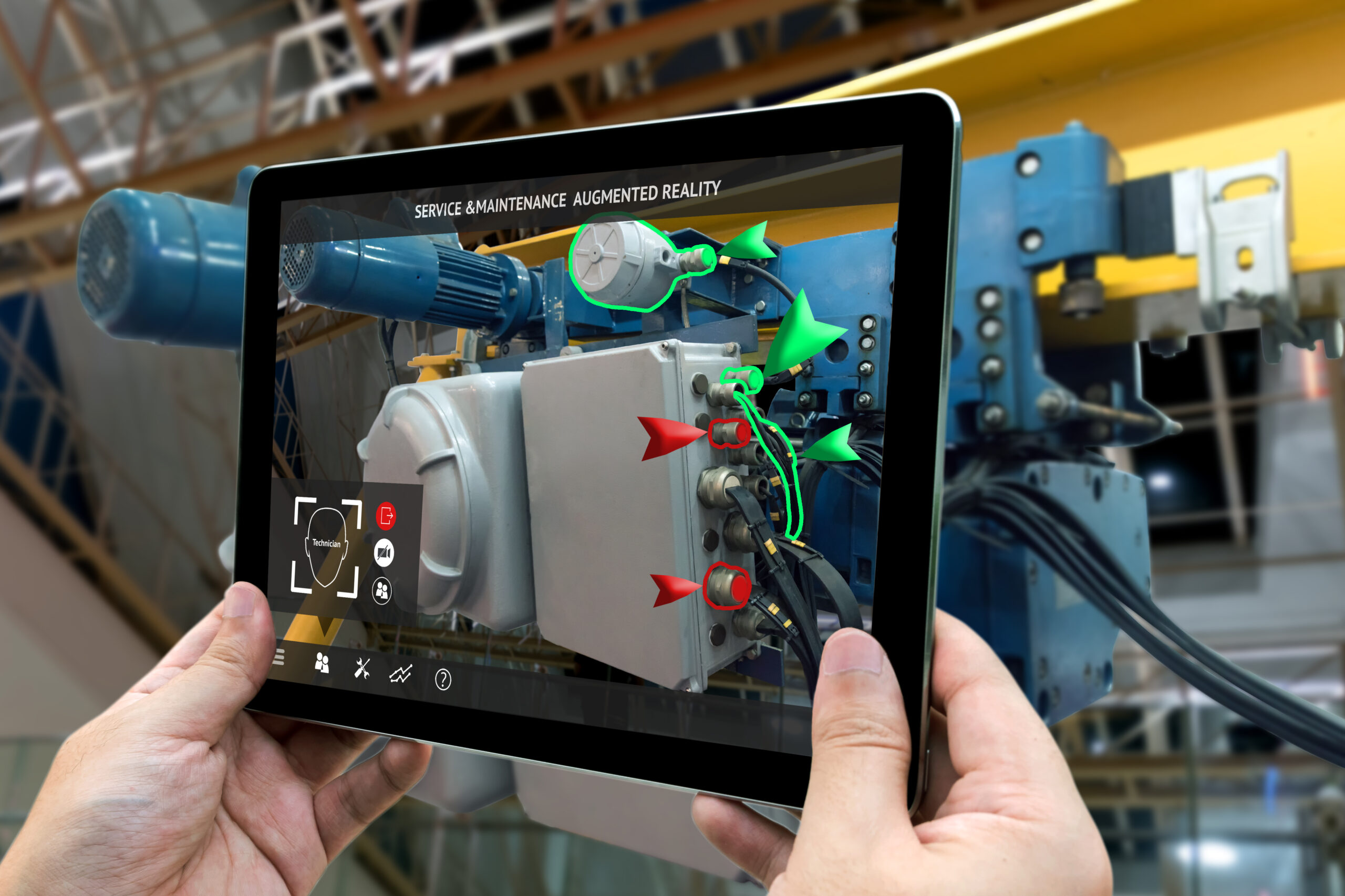

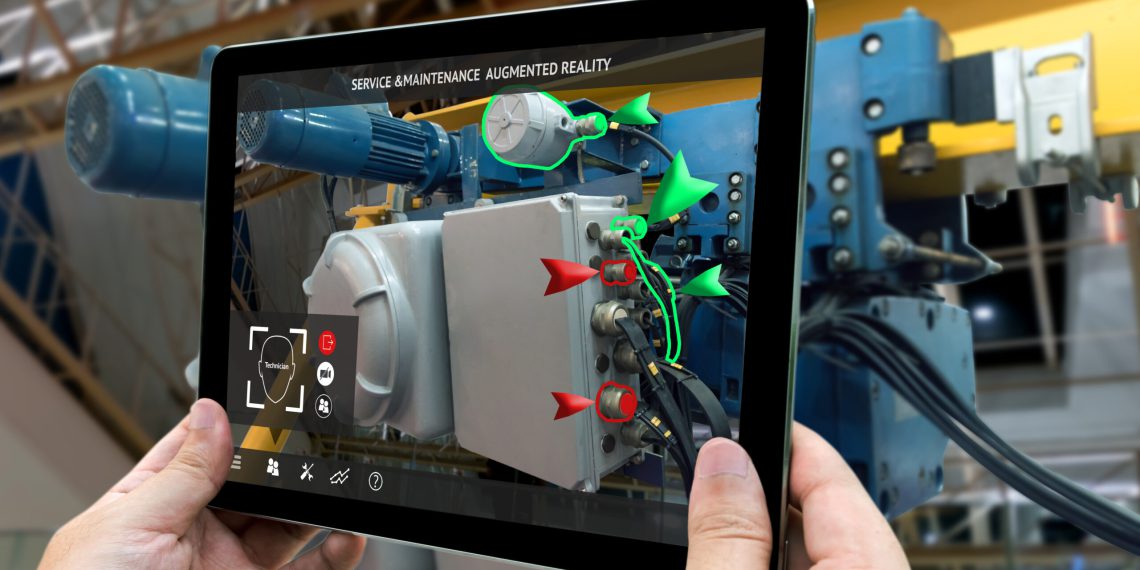

Via augmented reality, the specialist can get a virtual overview of the condition of the plant using a smartphone camera and smartglasses. Using advanced 3D object tracking, they can annotate the display with arrows, notes and markers that make it easy for the user to follow the expert’s instructions. This maximizes productivity, reduces downtime and, most importantly, saves time and money.

With digital tools for process analytics, the company offers optimization solutions that safely and reliably improve production processes:

– QualiMaster with EIRICH ProView.

The individual systems are a guarantee of quality in their respective areas of application. Automatically, the system continuously takes and examines samples from the mix and measures them in a variety of ways. The ProView software visualizes and analyzes this determined data. High user-friendliness, clear display and many setting options give the user a multitude of possibilities to monitor and control process engineering processes. The results can be evaluated by specialist personnel or by artificial intelligence in order to successively improve the subsequent batches.
